diameter
hardness
thickness
weight
width
For IPC laboratories and online monitoring at the tablet press.
The UTS-Series splits into various models, all tablet tester models are testing the main physical parameters of tablets:
With the Ph21 software the system becomes 21 CFR Part 11 compliant.
With UTS 4.3 – as with the proven UTS 4.1 in the IPC range – you can test round, oval, square and rectangular tablets as well as numerous special shapes. For difficult oblong tablets, the globally used Oblong Centering System (OZB) can also be integrated.

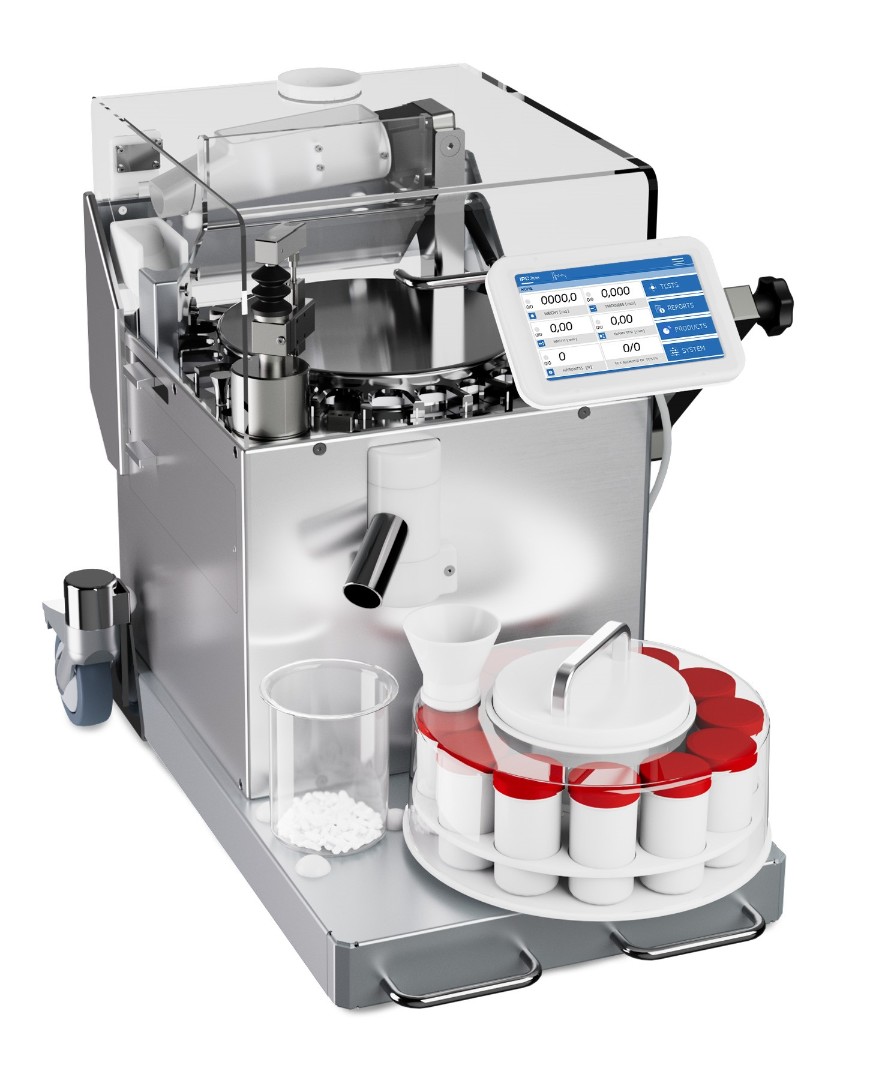

The UTS 4.3 is a universal and fully automatic tablet testing system based on the long-proven UTS 4.1 – this was developed for industrial use and can be found in production worldwide.
The UTS 4.3 as a LAB version is now equipped with the database-driven, intuitive all-in-one touch software and no longer requires additional software solutions for most areas of application.
We provide special solutions for specific customer requirements. Here are a few examples of customized Kraemer UTS models:

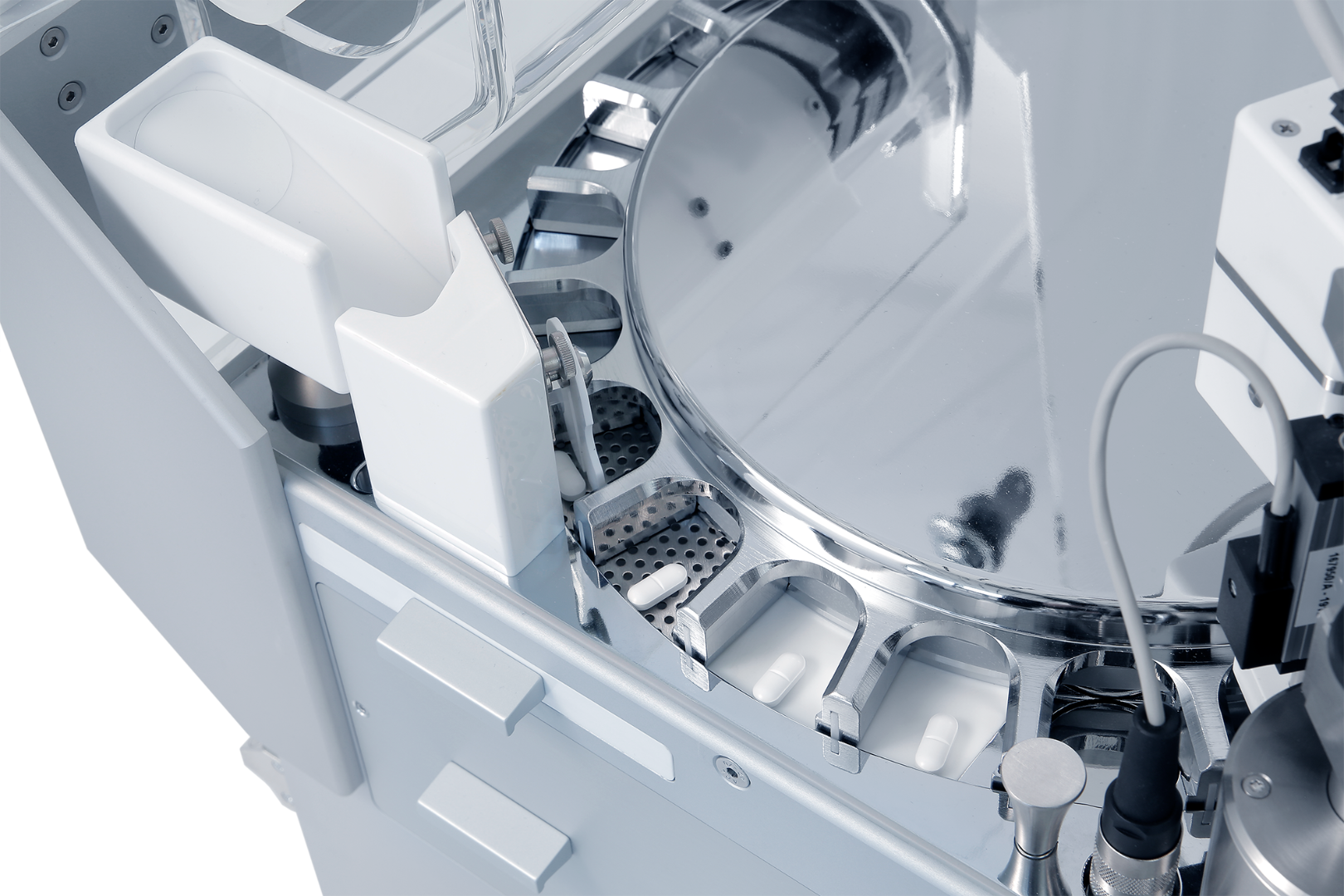

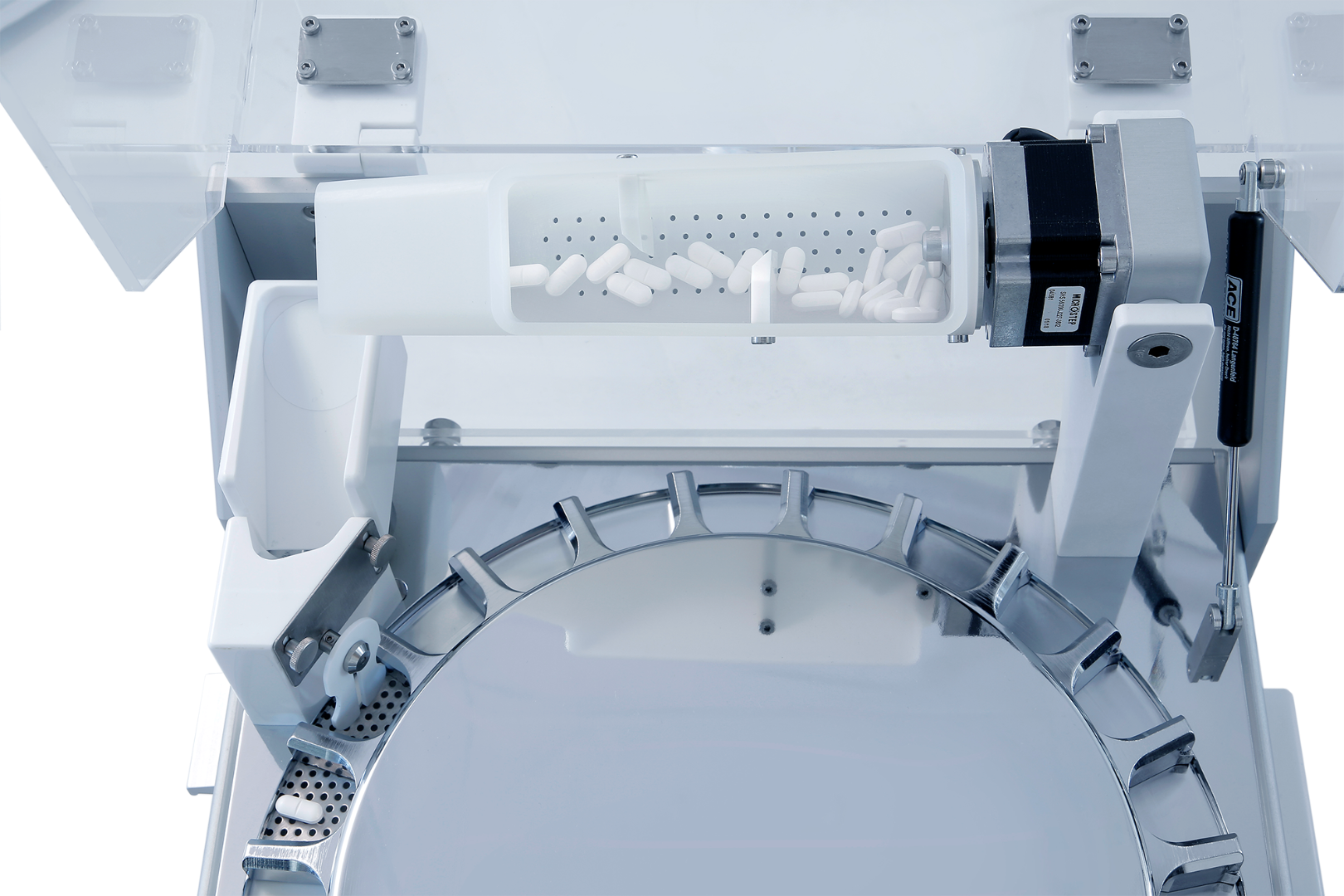

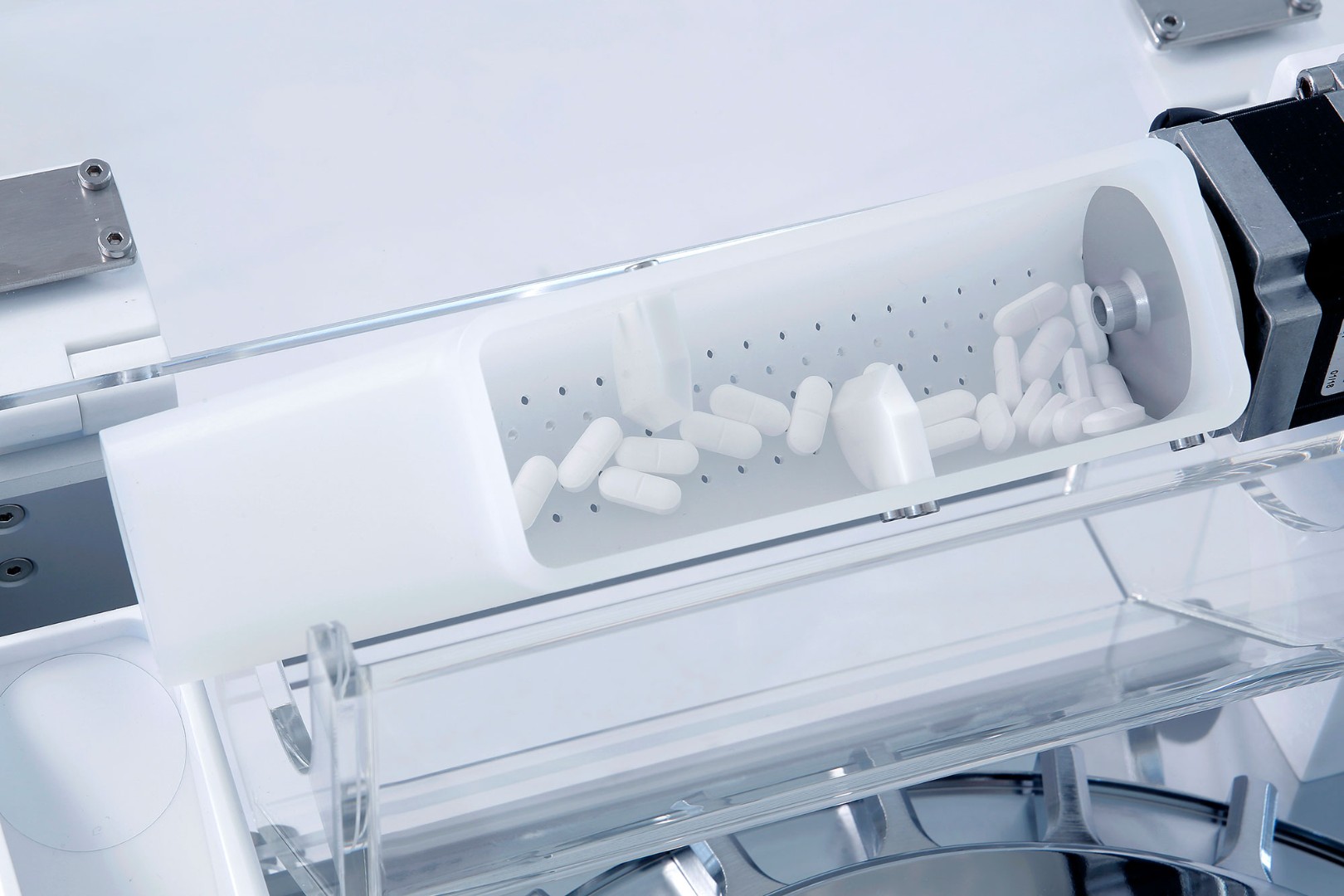

In the patented feeder chute which separates the tablets, tablets are also dedusted before testing. After the separation the tablets are fed one by one on a slide into the starwheel (star-shaped transfer element). Each tablet is detected by a dust-insensitive sensor.
Two additional tablet dedusting sections after the separation, keep the tablet testing stations clean and guarantee reliable test results.
Remaining dust and debris are collected in a special dust container under the separation slide.

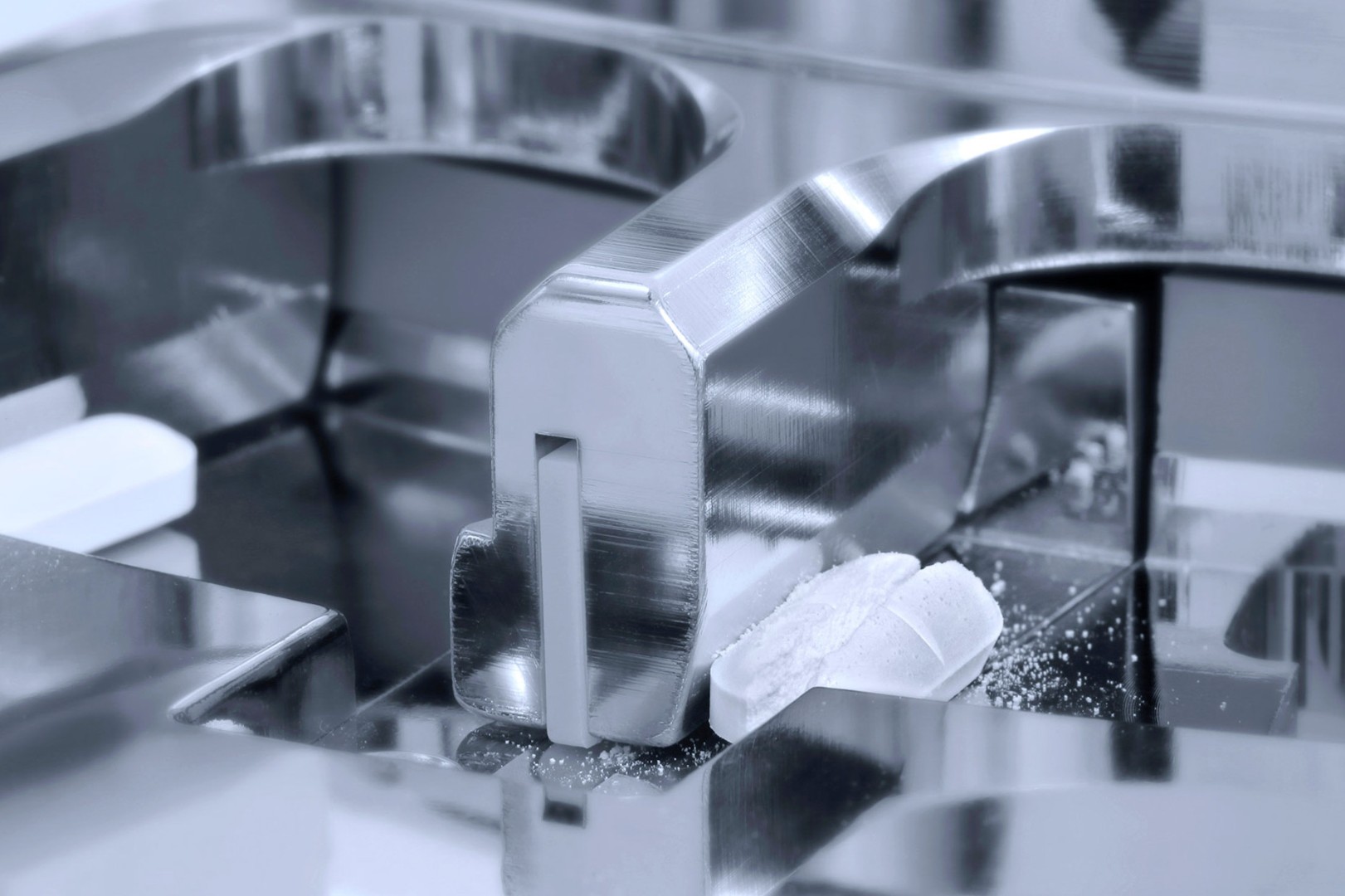

To keep the track where tablets are moved through the testing stations clean, inside the starwheel are 24 PTFE scrapers shuffling dust and tablet crumbs to the waste bin.

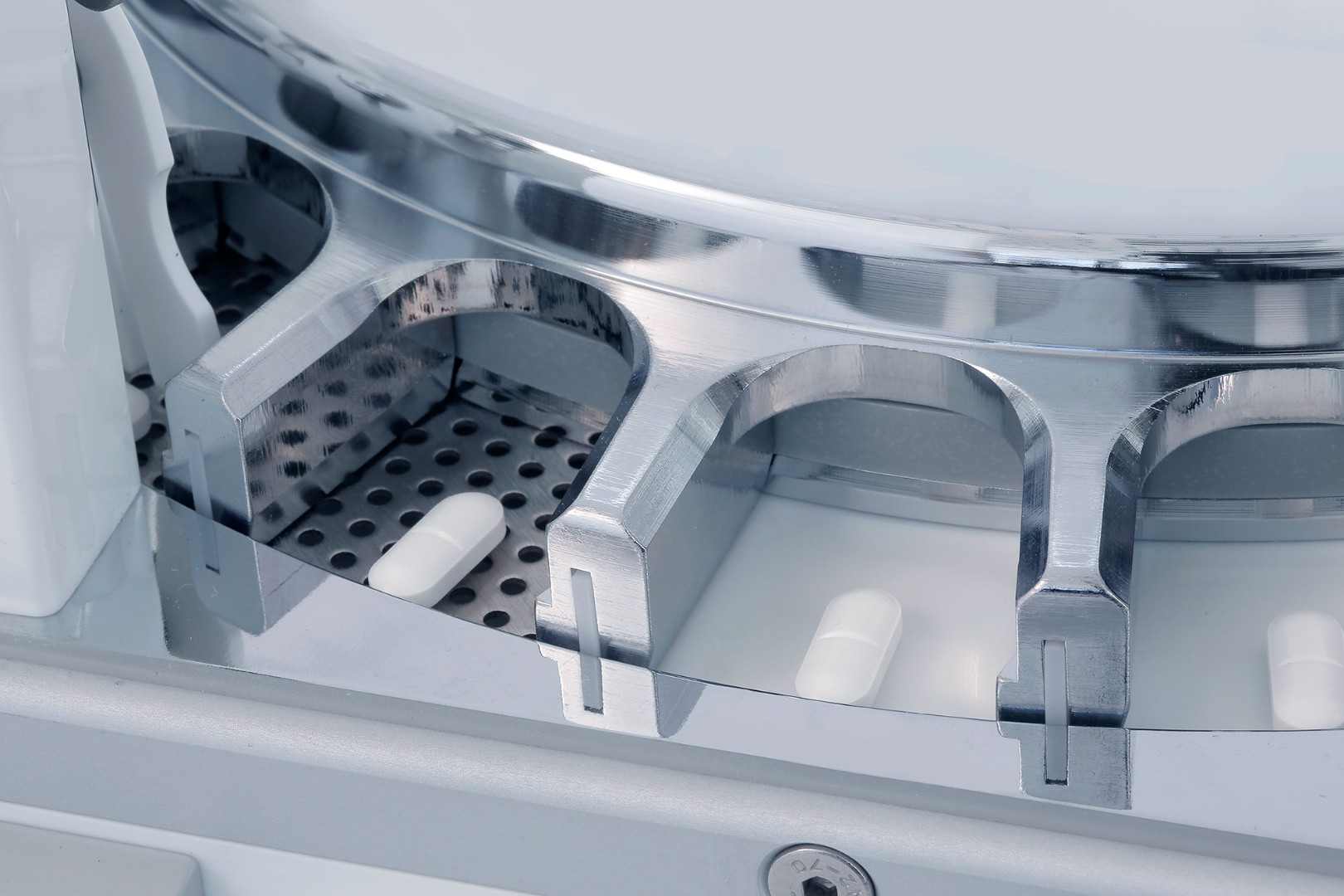

The smart design of the transport starwheel alignes, centers and transports the tablets through the different measuring stations: weight, thickness, diameter and hardness.
The transportation starwheel which moves tablets through the different testing station is available with many different executions and can be customized.
Charles Ischi AG is an established supplier of professional solutions for pharmaceutical quality and in-process control of capsules and tablet testing.
