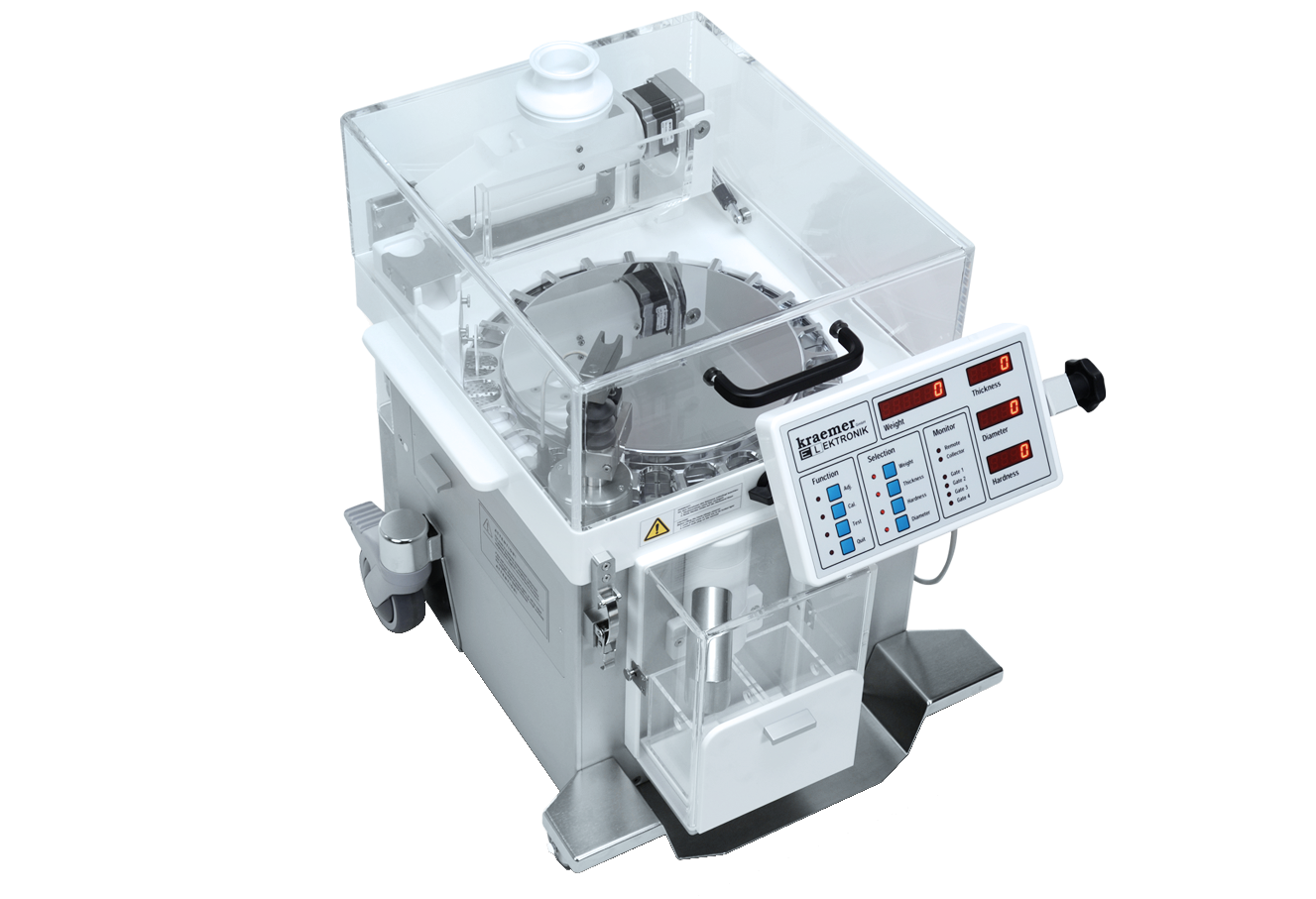

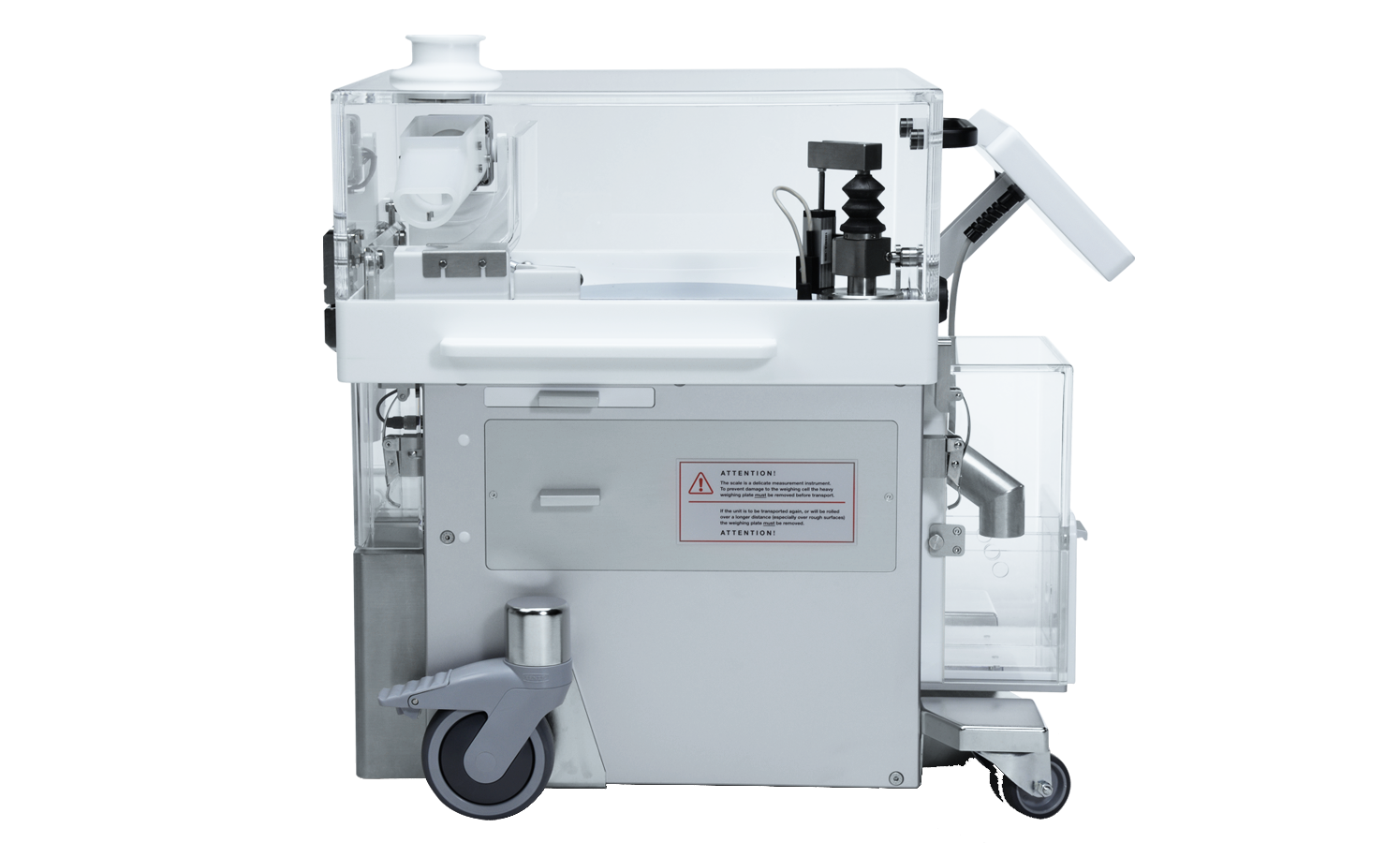

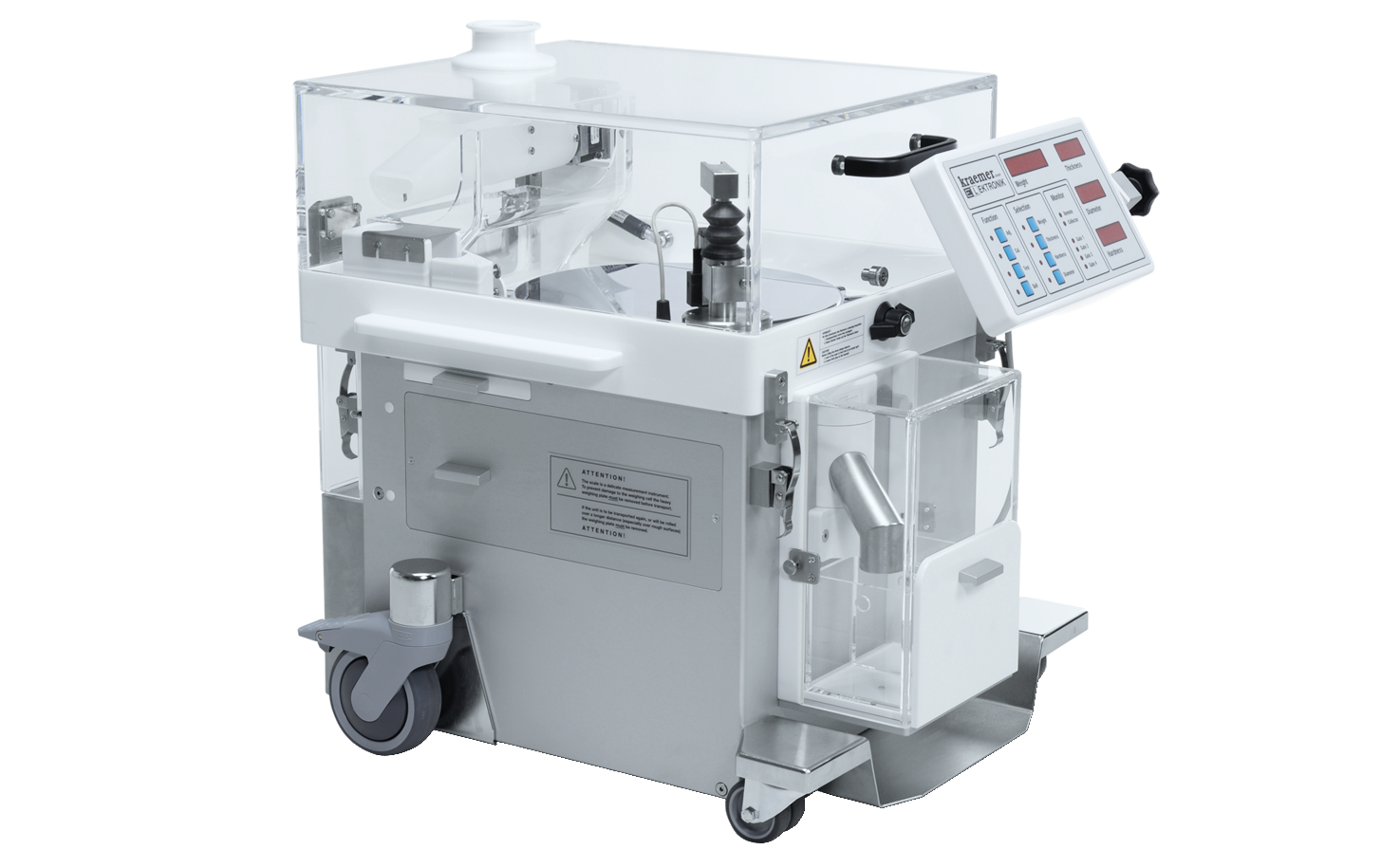

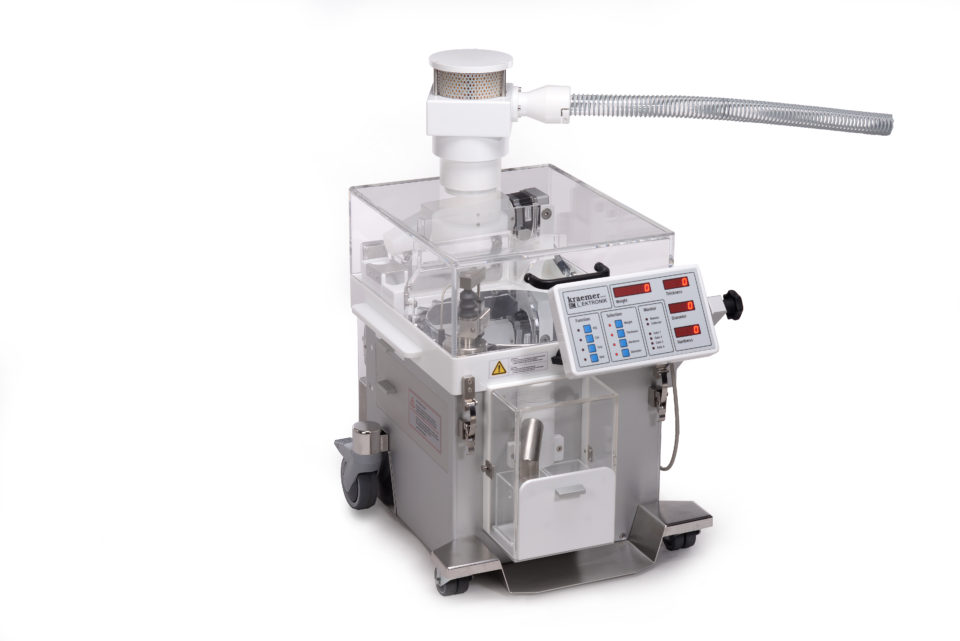

The DUST-PROOF automatic tablet testing sytem.
The special cover design and the unique sealing system for high performance duties provides the ultimate benefits for your production site:
The tablet testing system UTS 4.1-S20-TD has successfully passed the test for mean Human Toxicity Potential OEB Level 3 in accordance with the ISPE, in terms of both its general design and type and the model we have brought onto the market.
The UTS-S20 DUST-PROOF is based on the Kraemer UTS4.1 automatic tablet testing system with following modifications:

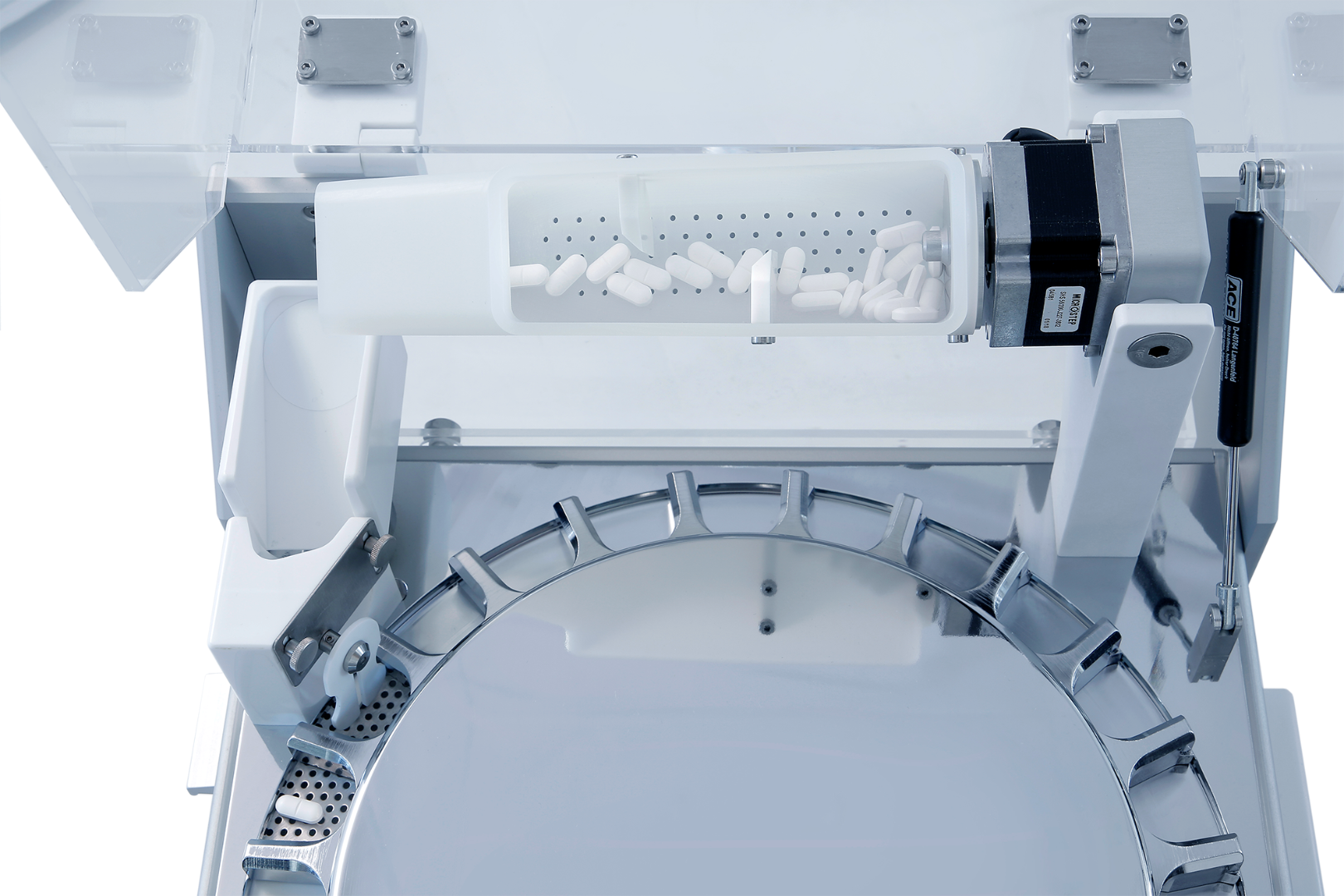

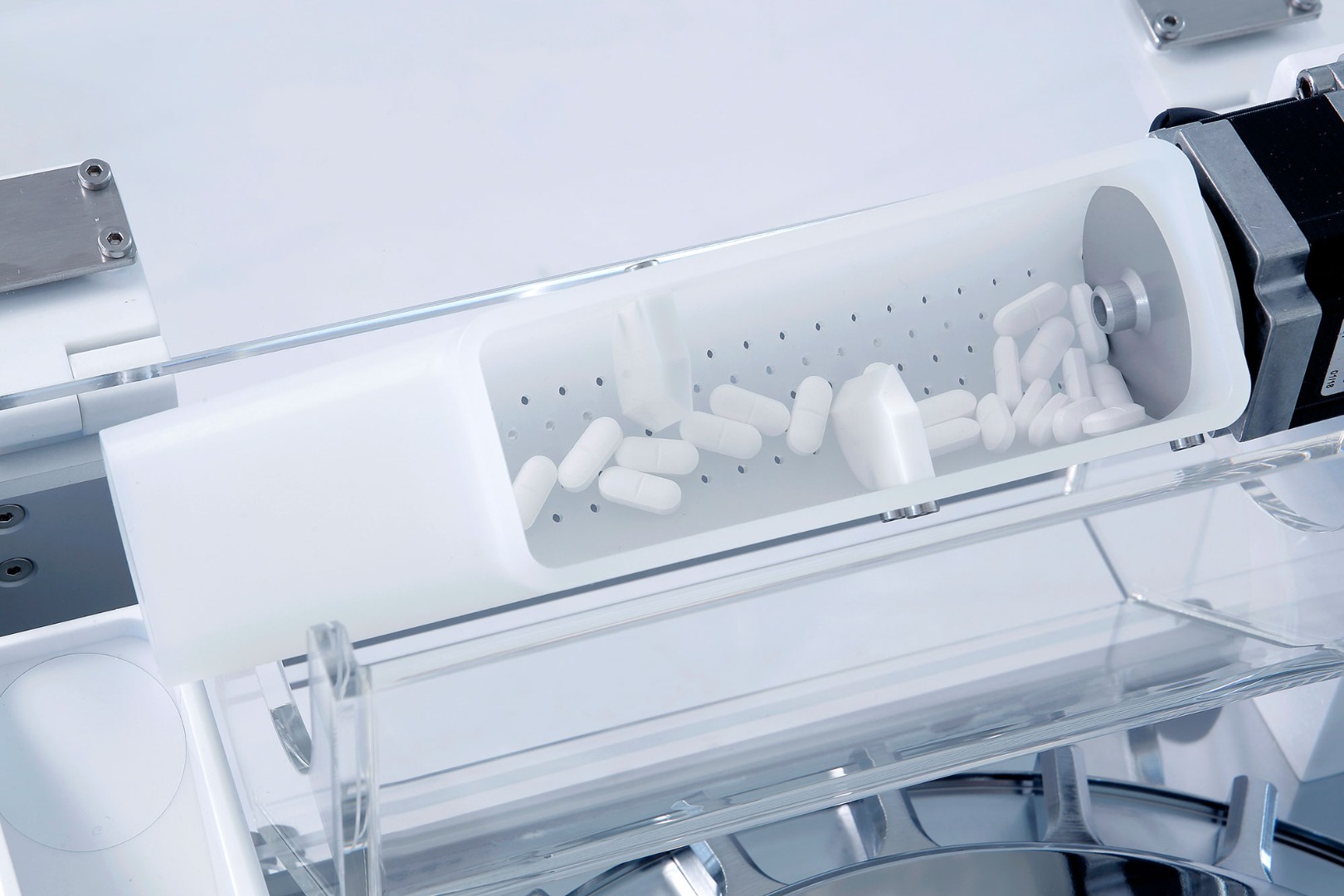

In the patented feeder chute the tablets are automatically dedusted before testing. After separation the tablets are fed into the starwheel (star-shaped transfer element) with the use of a dust-insensitive sensor.
An additional tablet dedusting section after the separation keeps the tablet tester clean.
Remaining dust and debris are collected in a special dust container.

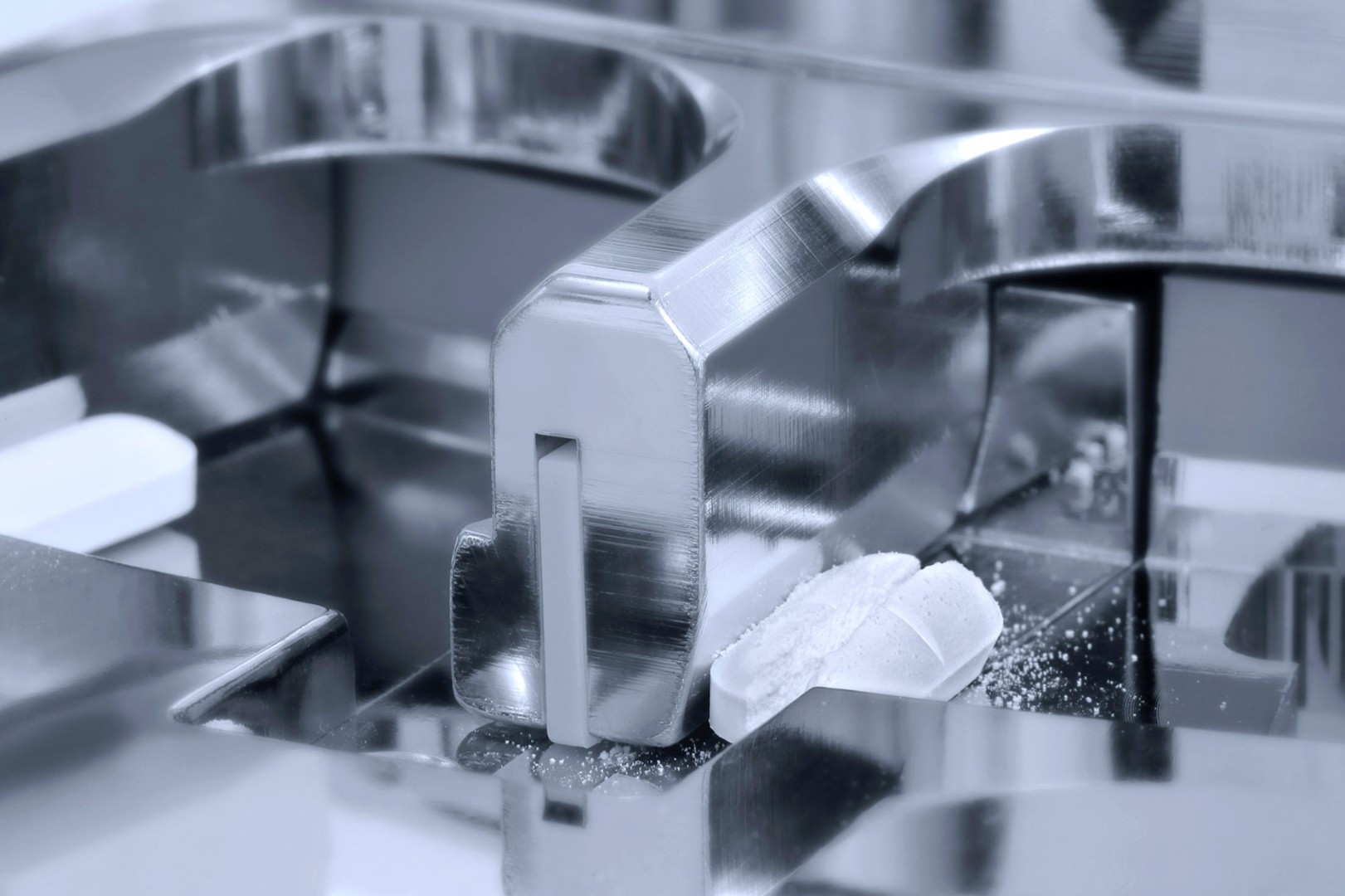

To keep the track where tablets are moved through the testing stations clean, inside the starwheel are 24 PTFE scrapers shuffling dust and tablet crumbs to the waste bin.

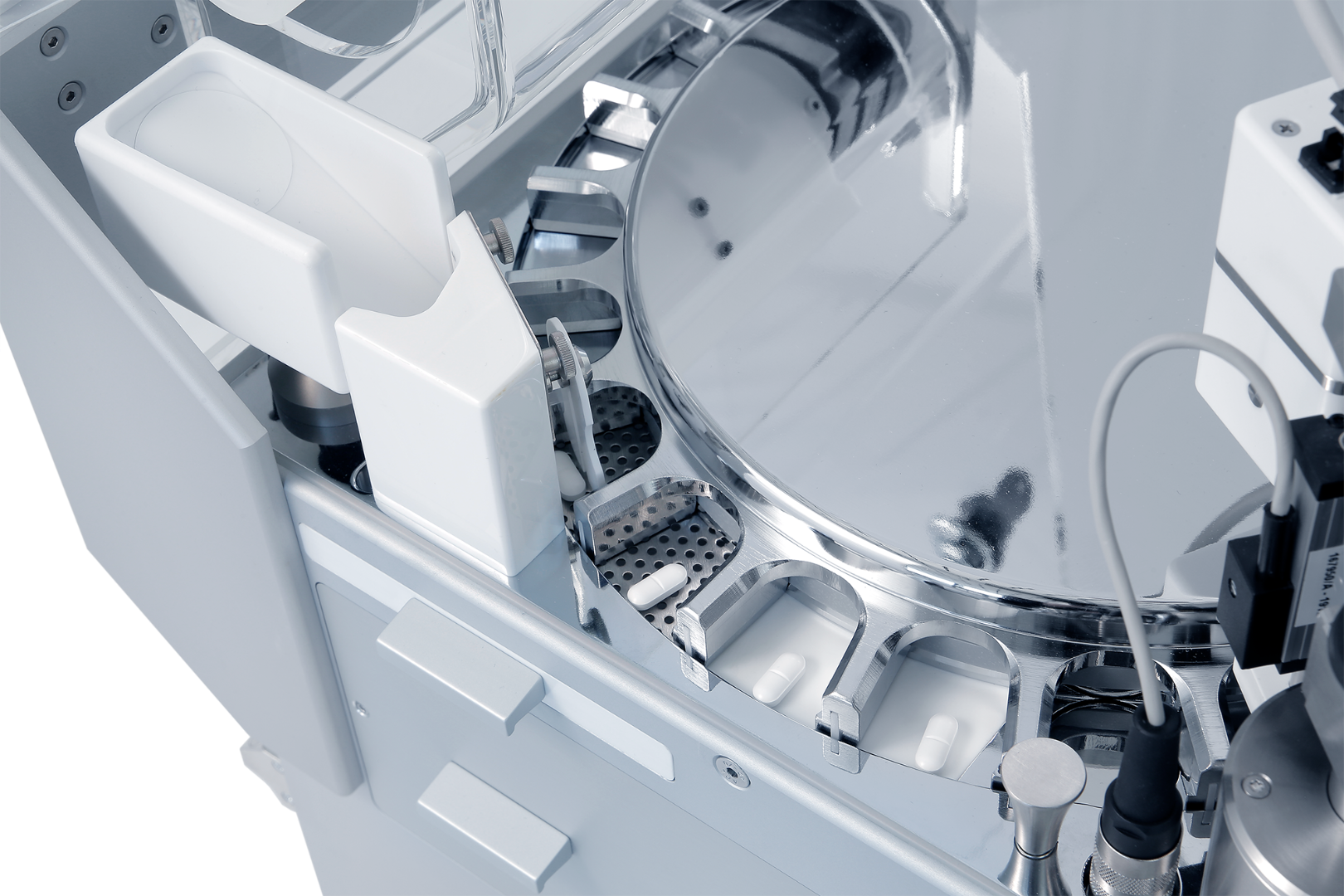

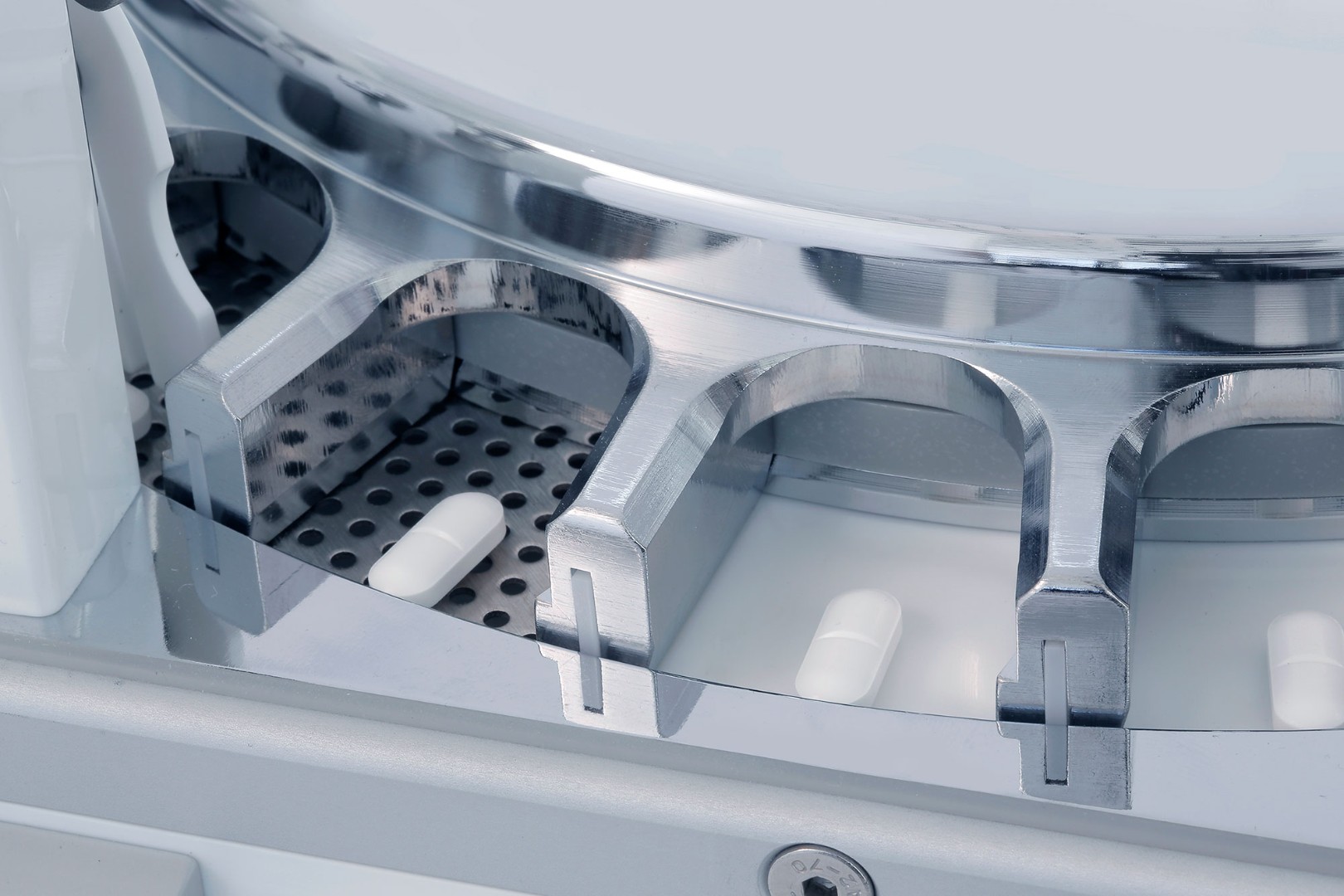

The smart design of the transport starwheel alignes, centers and transports the tablets through the different measuring stations: weight, thickness, diameter and hardness.
The transportation starwheel which moves tablets through the different testing station is available with many different executions and can be customized.
Use the Kraemer UTS4.1-S20 as an online monitoring device connected to your tablet press. Sampling can be initiated either from the production machine or via our Ph21 software.
Charles Ischi AG is an established supplier of professional solutions for pharmaceutical quality and in-process control of capsules and tablet testing.
